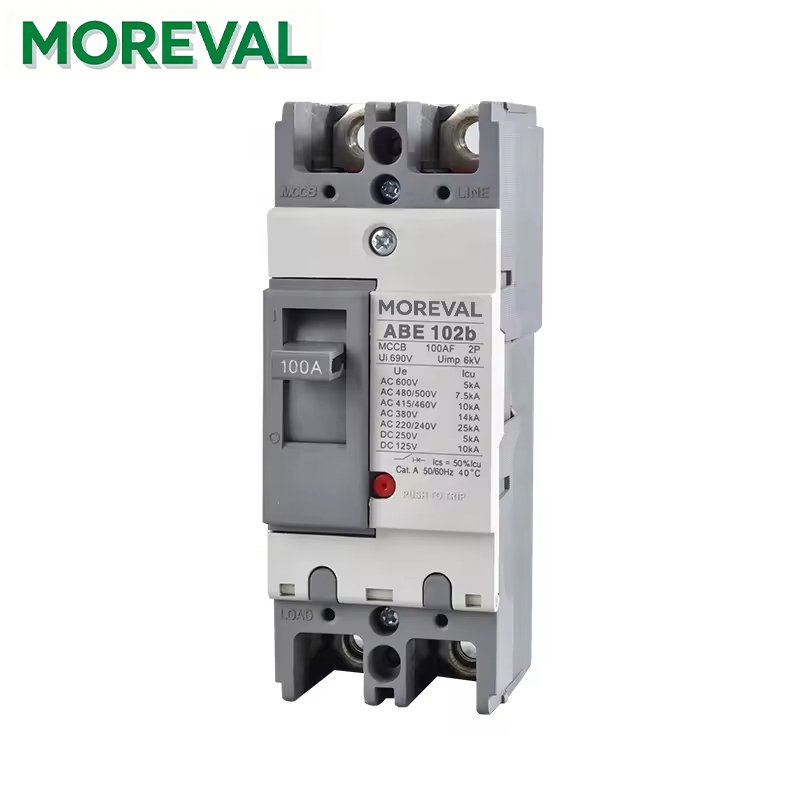

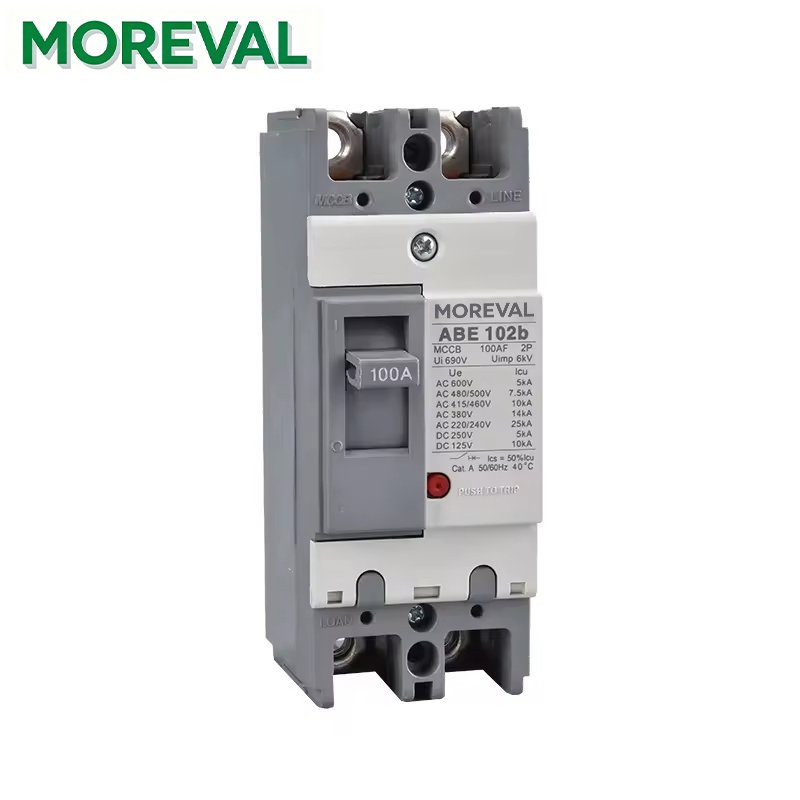

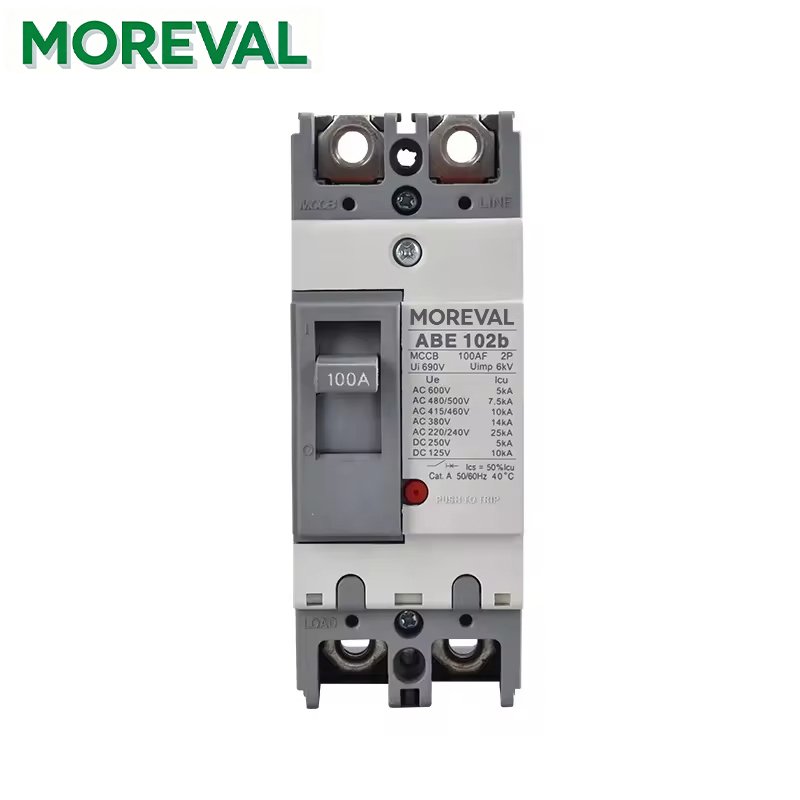

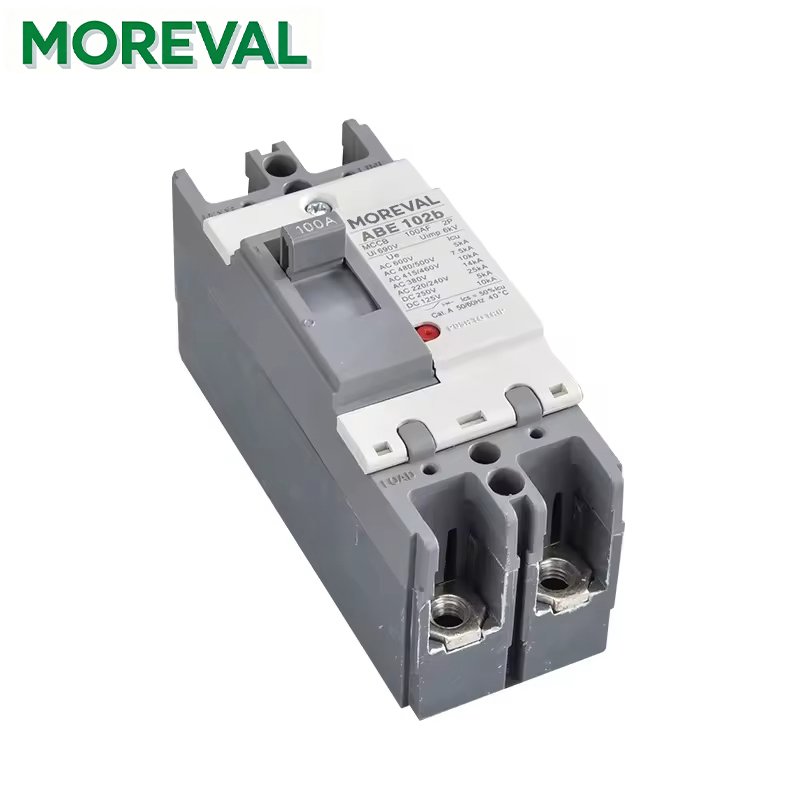

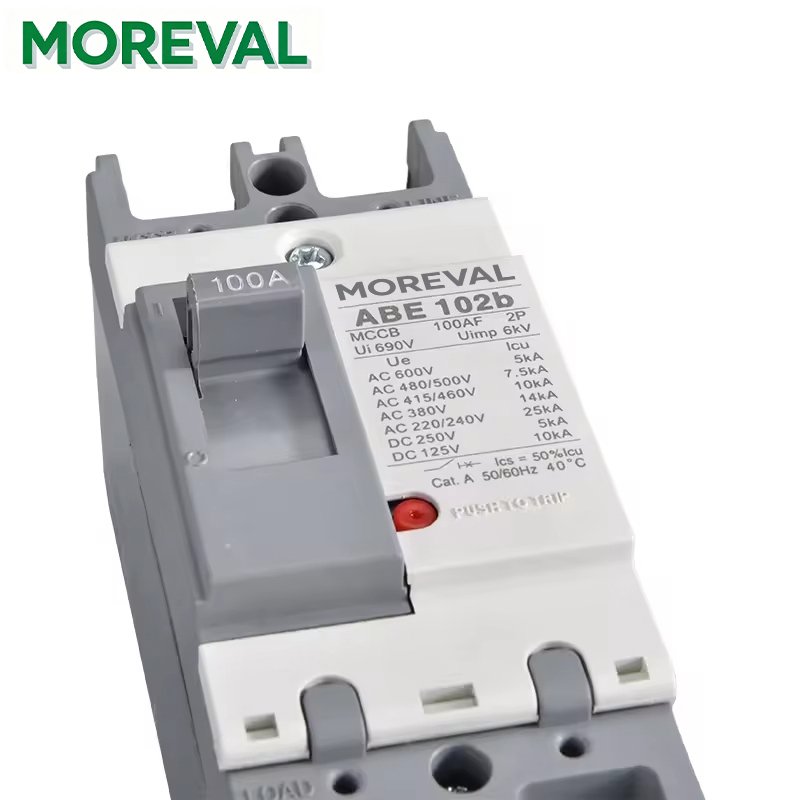

This high-performance molded case circuit breaker (MCCB) is a direct replacement for LS Electric ABS 102b 2P series, delivering identical electrical performance, mounting dimensions, and protection functions at a more cost-effective price. Designed for reliable overload and short-circuit protection in low-voltage distribution systems, it is the ideal drop-in replacement for industrial, commercial, and residential electrical projects, eliminating the need for costly original equipment upgrades.
| Parameter | Details |
|---|---|
| Model Compatibility | Direct replacement for LS ABS 102b 2P |
| Poles | 2P (2-Pole) |
| Frame Current (Inm) | 100AF |
| Rated Current (In) | 60A / 75A / 100A (selectable) |
| Rated Operating Voltage (Ue) | AC 415V / 690V |
| Rated Insulation Voltage (Ui) | 690V |
| Short Circuit Breaking Capacity (Icu @ 380/415V) | 25kA (Standard Type S) |
| Protection Functions | Thermal-magnetic trip (overload long-delay + short-circuit instantaneous protection) |
| Compliance & Certification | IEC 60947-2, GB 14048.2, CE |
| Mounting Type | Fixed, manual operation |
| Protection Degree | IP20 |
| Mechanical Life | 8,500+ operations |
| Electrical Life | 1,500+ operations |
| Housing Material | High flame-retardant, high-strength engineering plastic |
| Contact Material | Weld-resistant silver alloy |
Core Advantages
Fully compatible with the original LS ABS 102b 2P series in size, mounting holes, and electrical parameters. No modification to your existing panel or wiring is required, enabling seamless, fast replacement.
Equipped with a precision thermal-magnetic trip unit, it provides accurate overload protection to prevent equipment damage from overcurrent, and instantaneous short-circuit protection to cut off fault currents in milliseconds, ensuring the safety of your distribution system.
Delivers the same reliability and performance as the original LS product at a significantly lower cost, reducing your project budget without compromising safety or quality.
High flame-retardant engineering plastic housing resists high temperatures and impacts, while silver alloy contacts ensure stable conductivity and long service life, even in harsh industrial environments.
Suitable for all scenarios where the original LS ABS 102b 2P is used, including industrial plant distribution, commercial building power systems, residential distribution boxes, motor control circuits, and more.
Application Scenarios
- Industrial factory low-voltage distribution systems
- Commercial building power distribution and lighting circuits
- Residential building main and branch circuit protection
- Motor control and protection circuits
- Renewable energy (solar/wind) power distribution systems
- Data center and server room power protection
Package Includes
- 1 x Replacement MCCB (ABS 102b 2P, select your rated current: 60A / 75A / 100A)
- Installation manual
- Mounting accessories (if applicable)
Important Notes
- This is a replacement product, not an original LS Electric product.
- Please confirm your required rated current (60A/75A/100A) before placing an order.
- Installation must be performed by a qualified electrician in accordance with local electrical safety standards.
